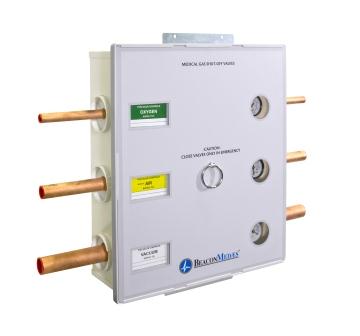

Beacon Medaes delivers the most advanced Zone Valve Box providing the perfect solution for Hospitals in the fight against infectious disease.

Sensors can be easily mounted in the assembly, allowing for quick access and reducing the need to open ceiling tiles, which could potentially release dust spores and other bacteria into the facility. The durable polycarbonate window is treated with Biomaster, an additive that has been proven to inhibit bacterial growth (Disclaimer: Use of this product does not protect user from disease-bearing and food-borne pathogens).

Aesthetically Pleasing

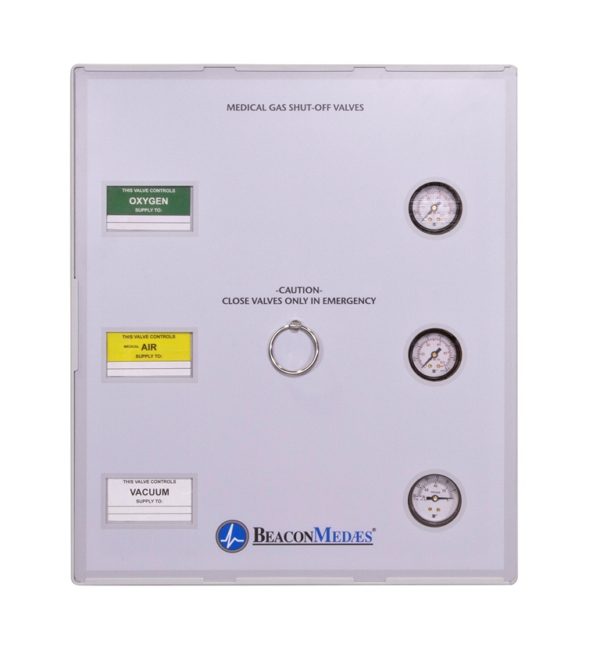

Featuring contemporary color and stylizing, the new Zone Valve Box fits perfectly with
present-day hospital designs. Large color-coded labels provided with the assembly make gas identification safe and easy to use.

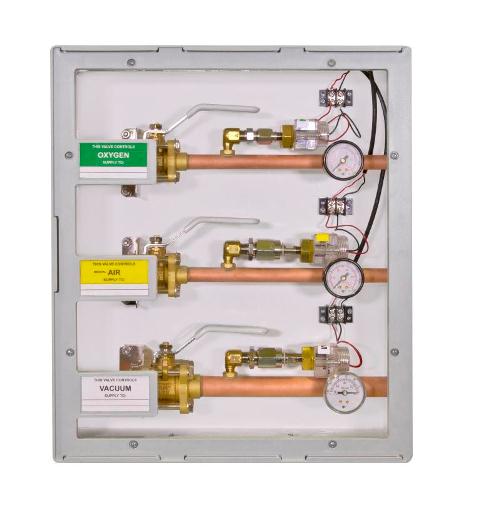

• Superior Design
• Easy and quick gas sensor installation, for sensor location and identification
• Up to seven valves can be configured within a single rough-in box, reducing installation time.
•  Three 1/8″ brass NPT ports: One allows for purging during the brazing process upstream of valve, one allows for connection of the sensor to the valve, and the third allows for connection of the gauge to the valve.
• Nylon 6/6 insulated grommets simplify valve replacement and reorientation within the rough-in box.
• The Zone Valve Box assembly meets all requirements of NFPA 99, CAN/CSA Z7396.1-09 and AS2896 2011.
