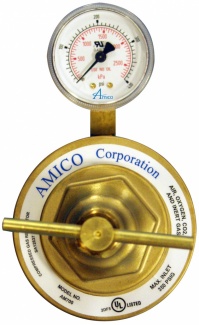

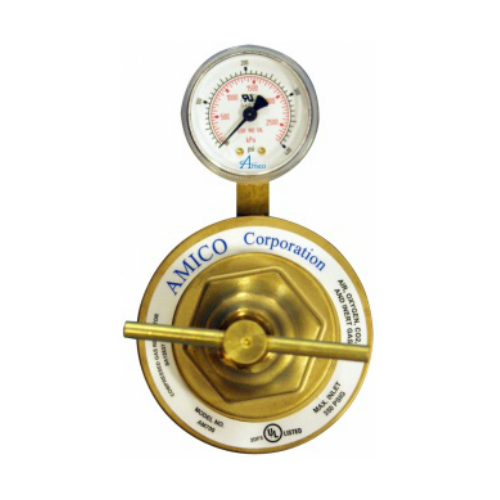

High Flow Regulator

Description

The Amico AM 700 Series High Flow Regulator shall be for a line supply, of a single stage and extra heavy duty type.

Application & Uses

High capacity gas service

Designed for gas distribution systems

Available with 1/2″ NPT(F)

Inlet pressure up to 350 PSIG

Design Construction

Forged brass body and housing cap

2-1/2″ brass gauge

Stem type seat mechanism

3-1/4″ diaphragm

Delrin cap bushing for smooth adjustments

Performance

Maximum Inlet – 350 PSIG

Delivery Range – 10 to 200 PSIG

Flow – see flow chart

Specifications & Materials

Dimensions – 7-1/4″ W x 7″ H x 5-1/8″ D (18.6 cm x 17.9 cm x 13.1 cm)

Weight – 5 lbs. 2 oz. (2.5 kg)

Body – Forged Brass

Diaphragm – Neoprene

Housing Cap – Forged Brass
